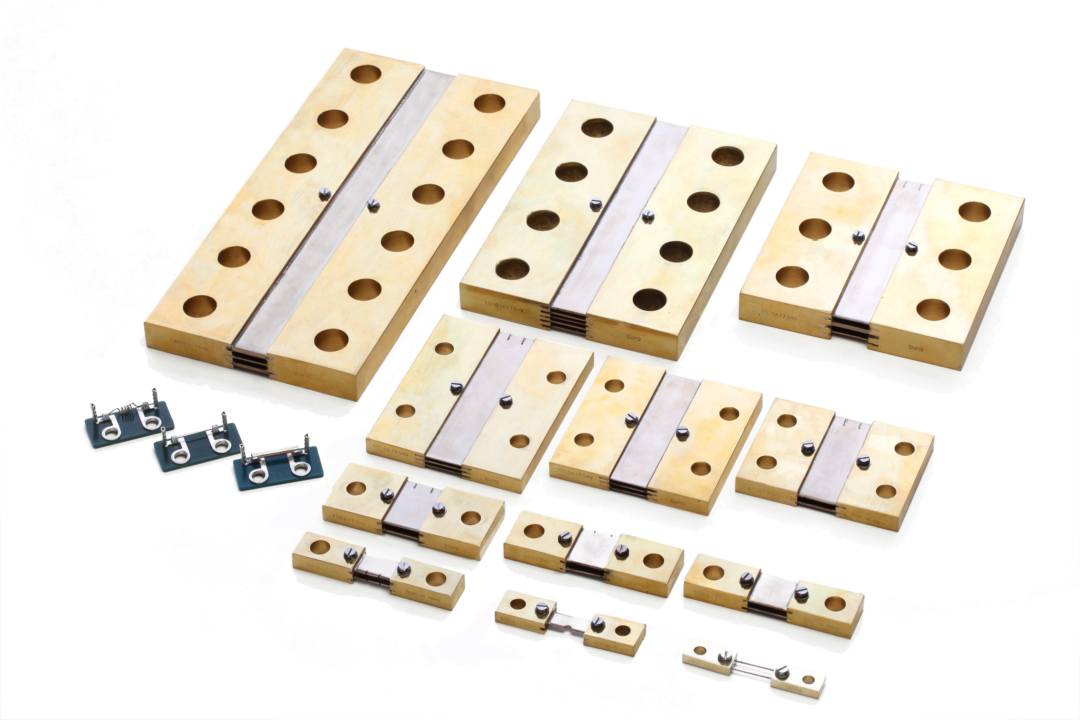

Applications

SUMO shunts are designed and manufactured to give optimum reliability in arduous conditions. Brass ended shunts are heavy-duty type shunts and provide an accurate D.C. milivolts signal suitable for Ammeter indicators, control devices and overload protection circuits. The base mounted shunts give the additional mechanical strength required for many applications while facilitating easy mounting. Wire ended shunts and Plate shunts are eco-friendly range of shunts manufactured to class 1.5. These shunts can be supplied in a variety of formats and configurations, confirming to the standard and/or practice most countries and several specific specifying authorities.

Features

  • Ratings: 1A up to 15000A with 50mV to 300mV output.
  • Long term stability
  • In-line Bus-bar mounting
  • Shock and vibration tested
  • Low temperature Co-efficient

Construction
Highest quality materials, rugged designed and advanced manufacturing techniques are used throughout. The substantial solid brass end blocks have conservatively rated contact surface areas and fixing hole dimensions to IEC51:(BS89). For maximum long-term stability and strength, copper manganese resistance elements are soldered into slots in the end block.

Installation
For maximum heat dissipation, mount shunts in the horizontal plane, with the blade, standing vertical. Utilise the full end block surface area. Ample ventilation should be provided. Bus bar should be adequately rated, clean and level, with a thin coat of silicon grease applied to the contact surface area. Use flat and tension washers under the nuts and tighten fully.

Shunts
  • D.C. SHUNTS FOR CATHODIC PROTECTION SYSTEM

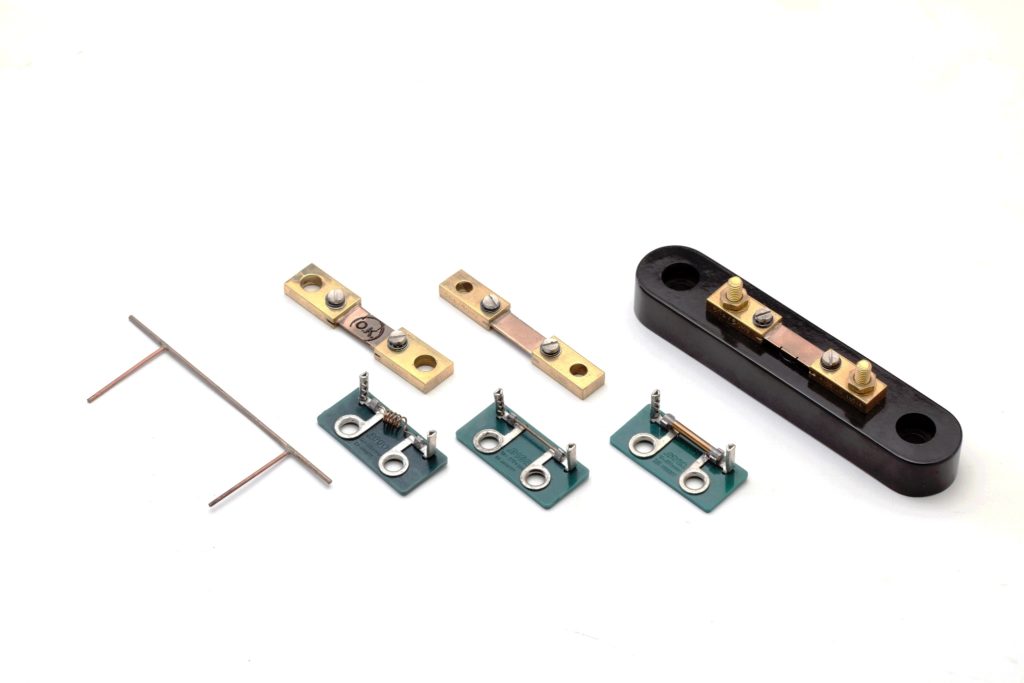

    D.C. SHUNTS FOR CATHODIC PROTECTION SYSTEM

    Quality Assurance All SUMO D.C. shunts are 100% calibrated and tested to within ±1% of the resistance value. Operating Temperature Range 20°C to 60°C Temperature Coefficients 0.002% per°C between 25°C...


    Know More

  • BRASS ENDED (COMPACT & STANDARD)

    BRASS ENDED (COMPACT & STANDARD)

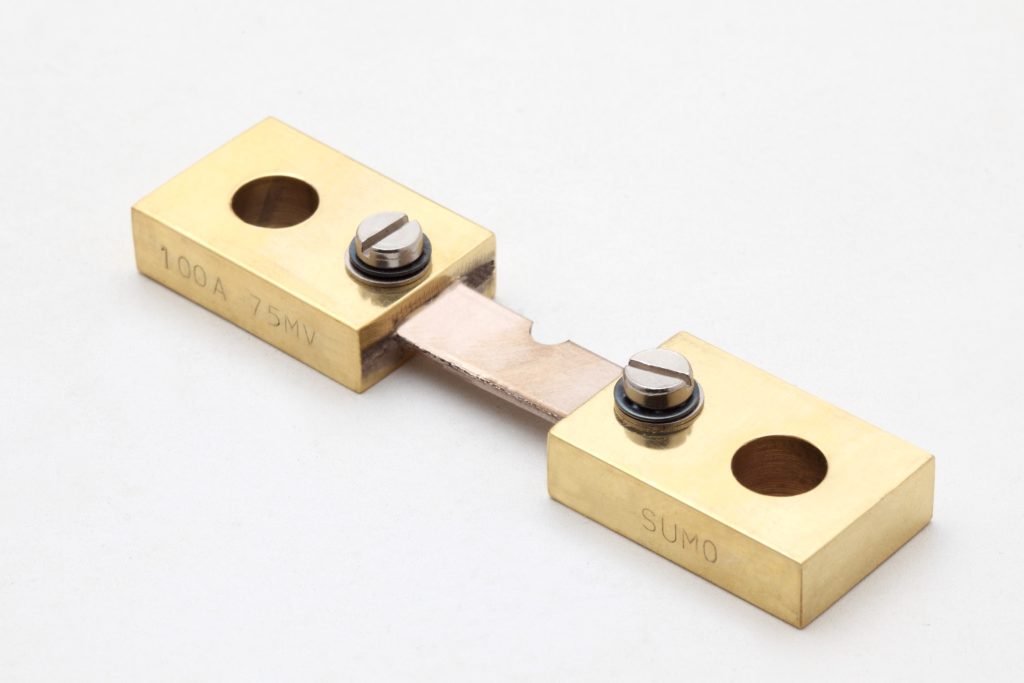

    RATINGS:10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 80A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, 600A, 750A, 1000A, 2000A, 2500A, 3000A, 4000A, 5000A,...


    Know More

  • WIRE ENDED SHUNTS (SUMO Type SS)

    WIRE ENDED SHUNTS (SUMO Type SS)

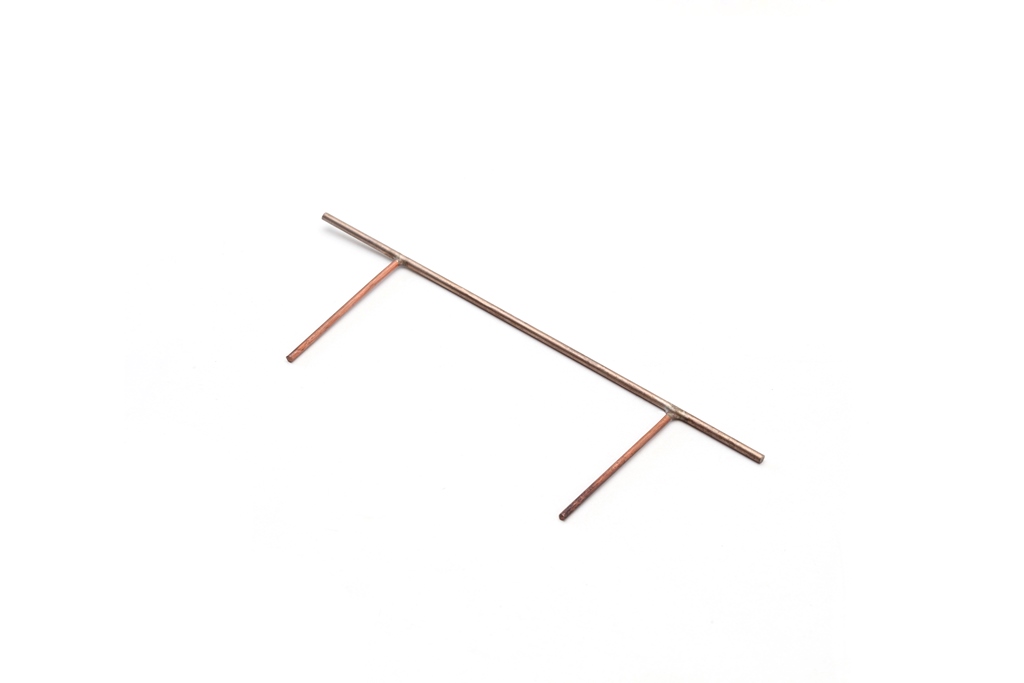

    SUMO Make Wire ended shunts are compact range of shunts manufactured to class 1.5.  Rating 6 AMP & 7.5 AMP. Accuracy Class 1.0 Output STANDARD OUTPUT ARE 60 & 75 MV Overload...


    Know More

  • BASE MOUNTED

    BASE MOUNTED

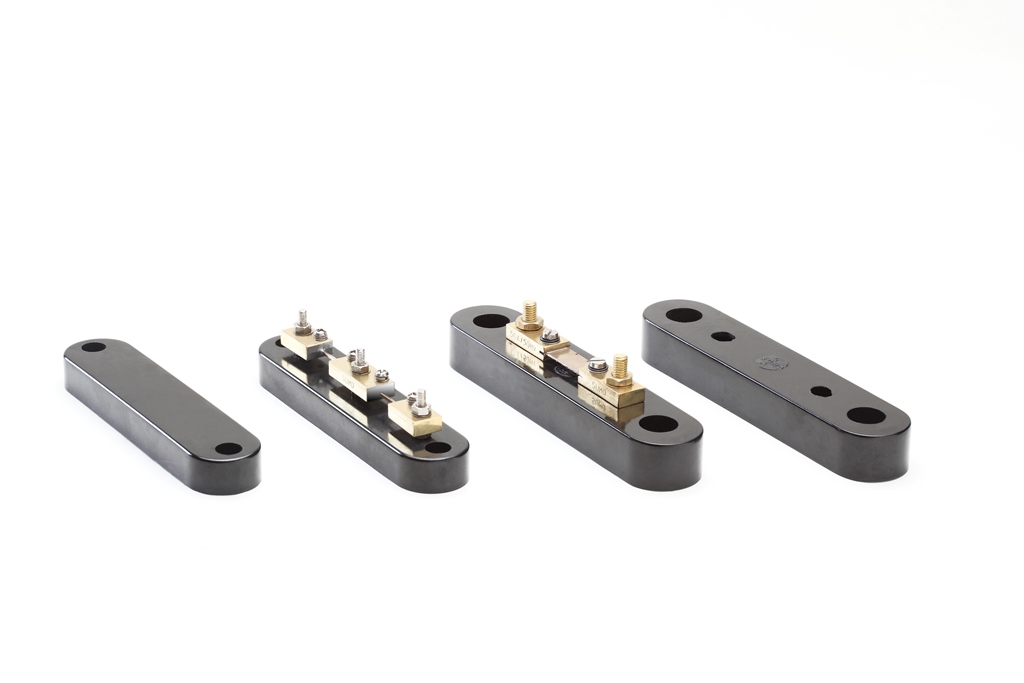

    Sumo make-base mounted insulated d.c. shunts can be manufactured to order Overload Withstands 1.2 X RATED CURRENT CONTINUOUSLY 5 Second Withstands 10 X RATED CURRENT Temperature Coefficients 0.002 % PER °C...


    Know More

  • PCB MOUNTING

    PCB MOUNTING

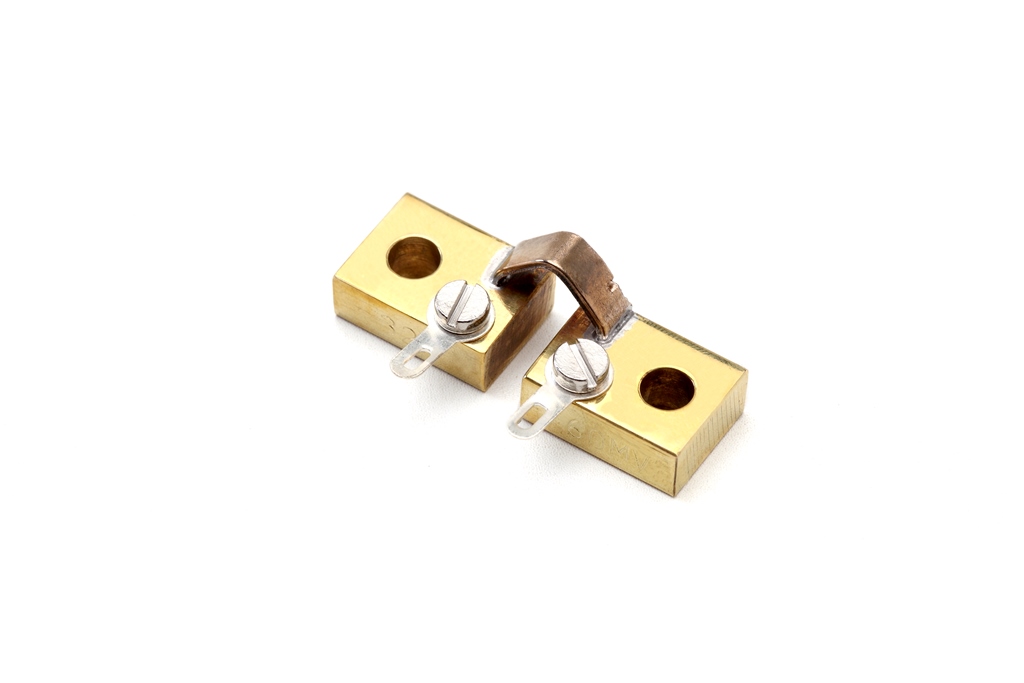

    PCB mounting D.C. Shunts are designed and manufactured to order, for UPS systems applications. Overload Withstands 1.2 X RATED CURRENT CONTINUOUSLY 5 Second Withstands 10 X RATED CURRENT Temperature Coefficients 0.002...


    Know More
